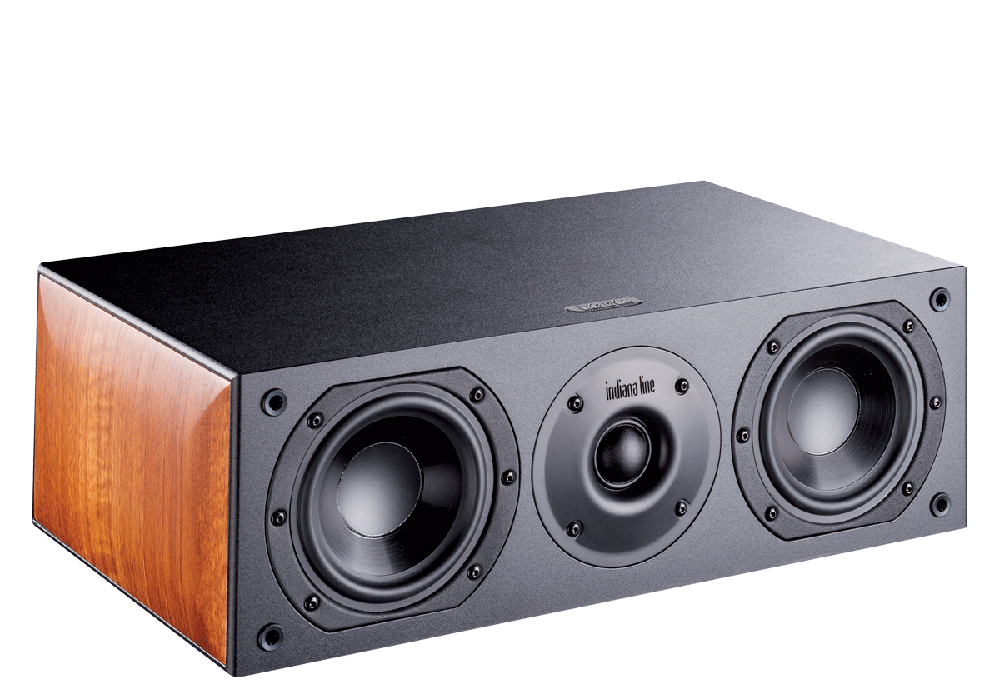

NOTA 740 X
Compact centre channel made of two 4-inches mid-woofer, with mica reinforced polypropylene cones and central phase plug and one-inch dome tweeter with lightweight treated silk dome, neodymium magnet and radial ventilation rear chamber. It is possible to tune the low frequencies with the room acoustics, simply by fitting into the reflex vent the foam plug supplied with the speaker. It is available in black oak vinyl finishing.
DATA
2-way, bass-reflex
30 ÷ 100 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
60 ÷ 22000 hertz response
92 dB (2.83 V / 1 m) sensitivity
2 x 107 mm mid-woofer
26 mm dome tweeter
2600 hertz crossover
400 x 130 x 235 mm – 4.6 kg
• shielded loudspeakers
• foam plug supplied
