Project Description

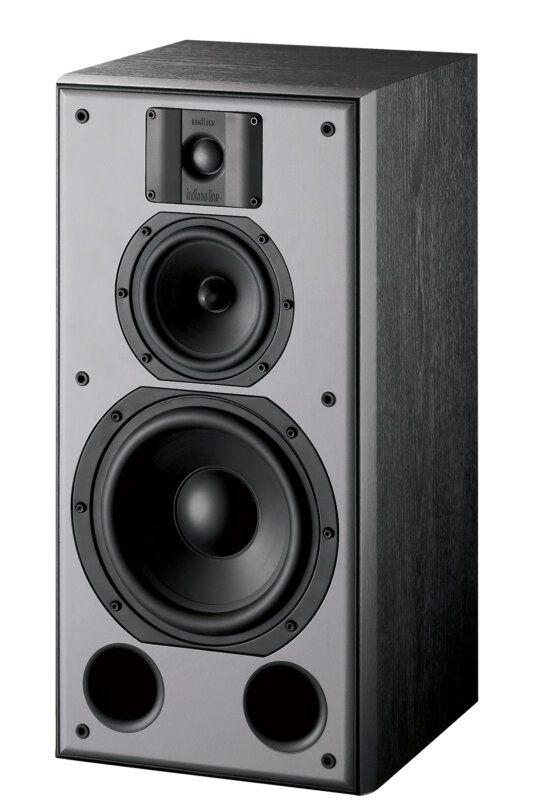

DJ 308
Three-way loudspeaker sporting an 8-inches woofer and a 5-inches midrange with phase plug. Cones are injected polypropylene. Neodymium tweeter with treated silk dome is equipped with a rear resonance chamber. DJ 308 is finished in black ash vinyl.
DATA
3-way, bass-reflex
30 ÷ 140 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
40 ÷ 22000 hertz response
93 dB (2.83 V / 1 m) sensitivity
230 mm woofer
135 mm midrange
26 mm dome tweeter
500/3500 hertz crossover
270 x 550 x 285 mm – 9.5 kg
shielded loudspeakers
