Screen Type:
|
Electric
|
|
Mount Type:
|
Wall and Ceiling
|
|
Format:
|
HDTV [16:9]
|
|
Brand:
|
Elite Screens
|
|
Viewable Diagonal in.:
|
180
|
|
Viewable Width in.:
|
156.9
|
|
Viewable Height in.:
|
87.8
|
|
Product Status:
|
In Stock
|
|
Gain:
|
1.1
|
|
Case Color:
|
White
|
|
Product Line:
|
CineTension Plus
|
|
Tensioned:
|
Tensioned
|
|
Front/Rear Projection:
|
Front
|
|
Projection Surface:
|
CineWhite
|

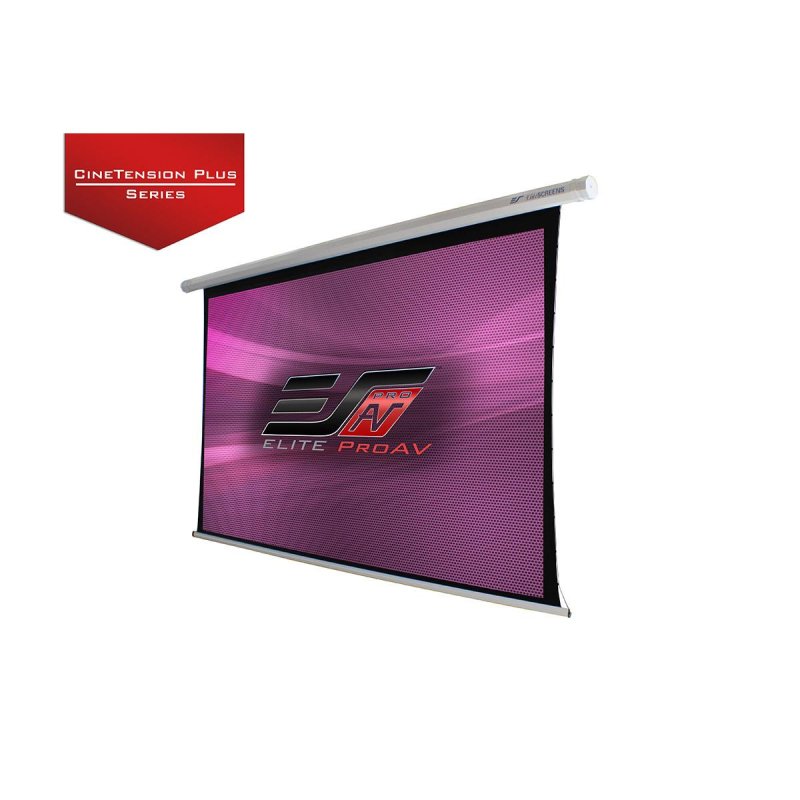

CineTension 2 is a robust and well made electric motorized projector screen. Its tab-tensioned material provides uniform flatness and has a wide viewing angle. The 1.0 gain material is also 4K Ultra HD and active 3D ready. It drops and retracts by means of a powerful tubular motor and its sliding installation brackets ensure a perfectly centered installation. A full IR/RF, RJ45 and 5-12 volt trigger control package is included.
Screen Material
- CineWhite 1.1 Gain matte white material
- 4K Ultra HD, Active 3D, and HDR Ready
- Standard 4-side black masking borders
- Rear projection material models also available
- Available in the following range of diagonal sizes
- 84″ – 135″ in 4:3 format
- 84″ – 150″ in 16:9 format
- 106″ and 128″ in 16:10 format
- 96″ in 2.35:1 format
Design and Installation
- Floating installation brackets provide easy alignment with wood studs to accommodate a wall or ceiling installation
- Black Aluminum housing with enamel coating is moisture resistant
- Shipped ready to plug & play with installation kit containing brackets, screws, and bubble leveler included
- Optional in-ceiling trim kit – sold separately
Control System
- Standard Infrared (IR) and Standard Radio Frequency (RF) remote controls
- Low-voltage detachable 3-way wall switch for in-line control
- Extended IR “eye” sensor for in-ceiling Infrared operation
- Wireless 5-12 volt trigger included for synchronized screen operation with the projector’s power cycle
- RJ45 port allows 3rd party control system integration
- Optional In-wall switch available – sold separately
Quality and Reliability
- Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
- Certified by AMX and CRESTRON
- Conforms to ANSI/UL STD. 60950-1
- Certified to CAN/CSA STD. C22.2
- 2-Year / 3-Year ENR-G Manufacturer’s Warranty by Elite Screens, an ISO9001 manufacturer since 2004
- Lifetime Tech Support by Elite’s Professional Service Team through Email, Web Chat or Toll Free Phone Call

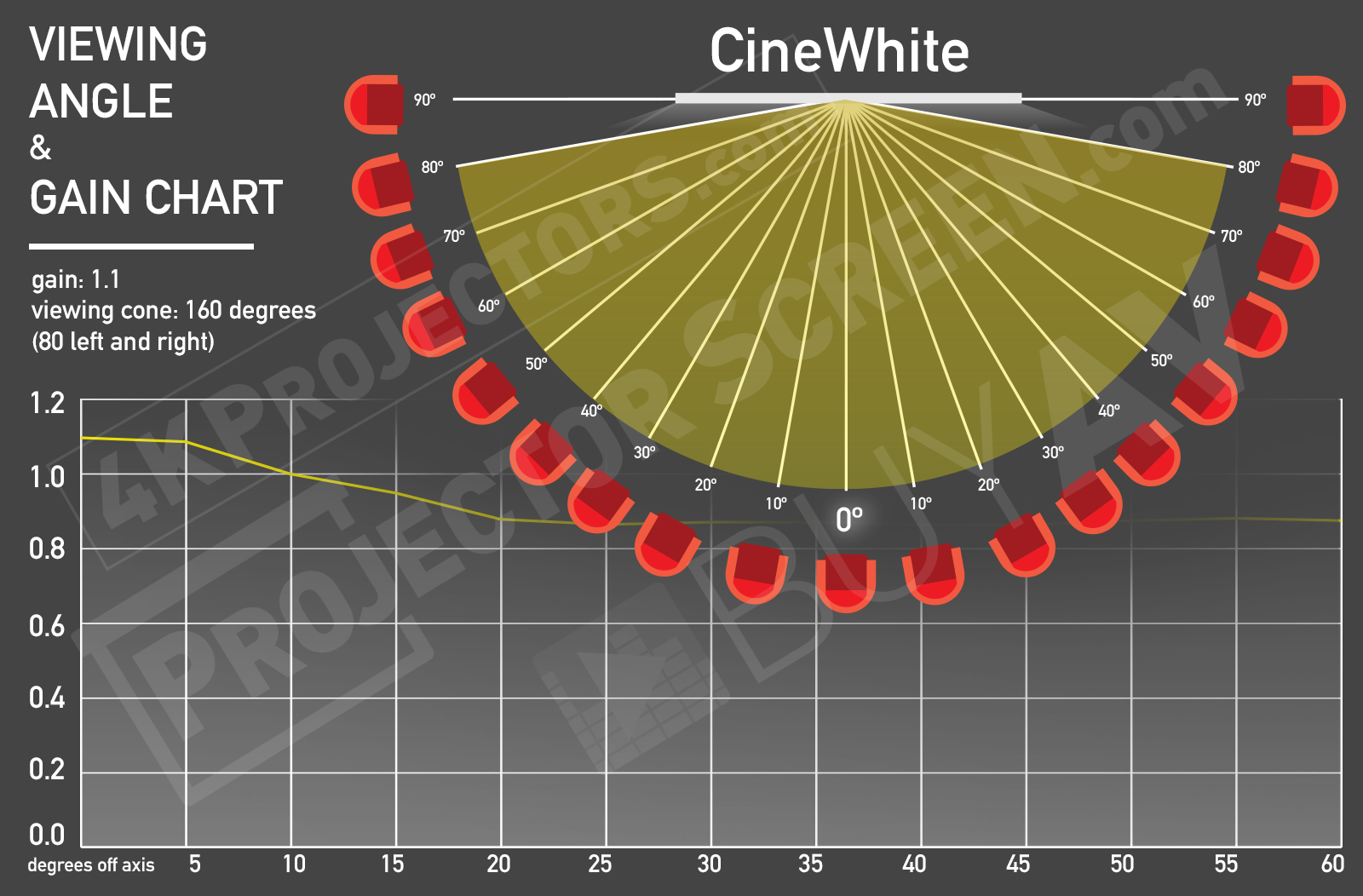

CineWhite
CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite’s tensions screen product lines.
This tensioned PVC surface is the best choice for today’s high-contrast ratio projectors in commercial or residential presentations.
The CineWhite material equals the performance to our MaxWhite product, but improves the experience with the superior surface flatness.Â
Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.
Surface Characteristics
- Multi-layer PVC (Polyvinyl chloride) with texture and surface coating
- Mildew Resistant
- Surface can be cleaned with (water) moist cotton cloth
- Front Projection Material
Surface Material Properties
| Peak Gain | 1.10 |
| Half Gain | 80 Degrees |
| Front / Rear Projection | Front |
